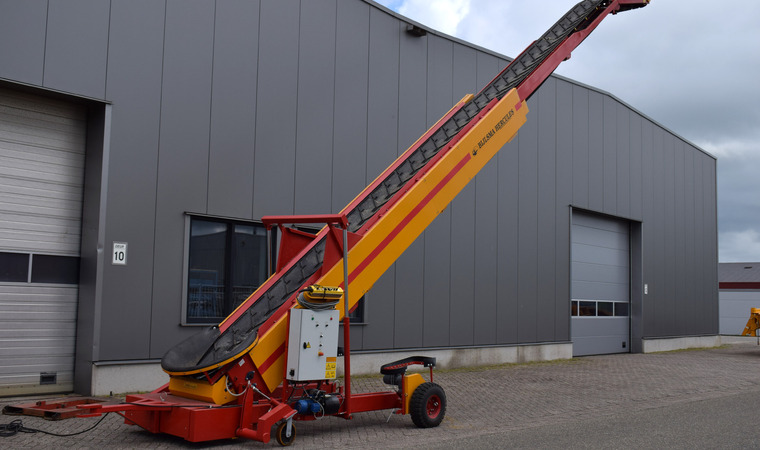

The BOX store loaders have a high-capacity, automatic swivel mechanism that prevents pouring cones and thus ensures optimal filling and good ventilation of the product in the storage shed. The telescopic mechanism, height adjustment, swivel mechanism and travel gear of the machine are driven by separate gearmotors. All functions can be controlled via an easy-to-use remote control. This is standard equipped with no less than 15 meters of cable. With adjustable stops and limit switches, the swiveling range of the store filler can be perfectly adjusted to the width of the storage shed, while the adjustable idle time ensures a flat filling.
| Model | BOX 800-65-3 W | BOX 1000-65-3 W |
| Belt length | 6,800 - 11,300 mm | 7,800 - 13,300 mm |
| Belt width | 650 mm | 650 mm |
| Belt shape | trough-shaped | trough-shaped |
| Belt support | support rollers Ø 50 mm | support rollers Ø 50 mm |
| Belt profile | V-shaped 17 mm | V-shaped 17 mm |
| Swivel reach | 10,500 - 19,450 mm | 12,500 - 21,500 mm |
| Reach in front of the wheels | 3,500 - 8,000 mm | 4,500 - 10,000 mm |
| Input height | 900 - 950 mm | 800 - 950 mm |
| Output height | 500 - 5,800 mm | 500 - 6,500 mm |
| Belt speed (2 turns) | 30/60 m/min | 30/60 m/min |
| Belt drive | 2.0/2.4 kW | 2.0/2.4 kW |
| Swivel mechanism | electric on wheels | electric on wheels |
| Length adjustment | electric | electric |
| Drive length adjustment | 0.55 kW | 0.55 kW |
| Height adjustment | electric / hydraulic | electric / hydraulic |
| Drive height adjustment | 0.75 kW | 0.75 kW |
| Drive | electric | electric |
| Driving swivel | 2 x 0.37 kW | 2 x 0.37 kW |
| Weight | 2,880 kg | 3,620 kg |
