The BHV storage loaders are designed in such a way that all components are safely concealed in the base frame, giving the store filler a sleek appearance. This means that the components are well protected against all external influences. These components are easily accessible for maintenance and service via easily removable panels. The collapse of the machine has also been kept remarkably short, which means that the use of an intermediate strap with additional drop points for the product is not necessary. This makes the machine extremely manoeuvrable. An additional advantage is that the steering wheel is located in the counterweight and does not protrude outside the machine, so that no protruding and dangerous parts move back and forth during the swing. The BHV is available in lengths of 15, 17 and 19 meters.
| Model | BHV 15080 | BHV 17080 | BHV 19080 |

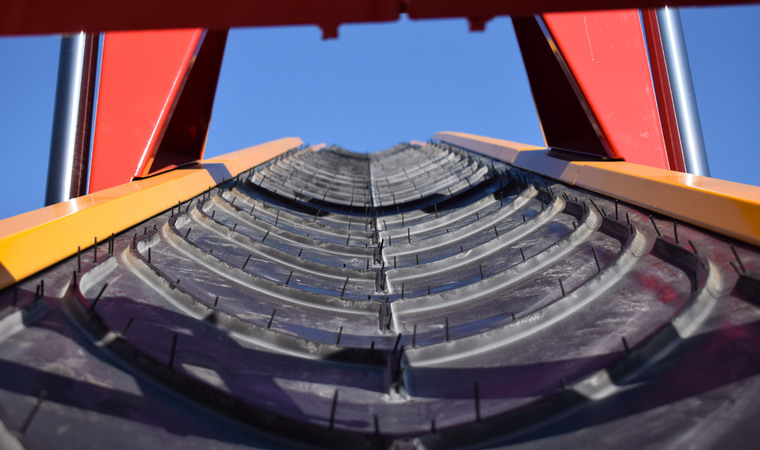

| Belt type | Rubber belt with cleats | Rubber belt with cleats | Rubber belt with cleats |
| Cleats | U-shaped 15 mm | U-shaped 15 mm | U-shaped 15 mm |
| Belt shape | Trough-shaped | Trough-shaped | Trough-shaped |
| Belt support | Support rollers Ø 50 mm | Support rollers Ø 50 mm | Support rollers Ø 50 mm |
| Belt width | 800 mm | 800 mm | 800 mm |
| Total length (retracted) | 10.410 mm | 11.410 mm | 12.410 mm |
| Total length (extracted) | 16.400 mm | 18.400 mm | 20.400 mm |
| Total width (transport) | 2.210 mm | 2.210 mm | 2.210 mm |
| Total width (in operation) | 2.670 mm | 2.670 mm | 2.670 mm |
| Infeed heigth | 1.030 mm | 1.030 mm | 1.030 mm |
| Minimum discharge height | 250 mm | 250 mm | 250 mm |
| Maximum discharge height | 7.180 mm | 8.120 mm | 9.060 mm |
| Maximum angle of inclination | 28° | 28° | 28° |
| Working length (support leg - front of the wheels) |
3.740 mm | 3.740 mm | 4.240 mm |
| Length in front of the wheels (retracted, low position) |
4.690 mm | 5.690 mm | 6.190 mm |
| Length in front of the wheels (retracted, high position) |
3.830 mm | 4.710 mm | 5.090 mm |
| Length in front of the wheels (extended, low position) |
10.680 mm | 12.680 mm | 14.180 mm |
| Length in front of the wheels (extended, high position) |
9.120 mm | 10.890 mm | 12.160 mm |
| Belt speed | 20 - 80 m/min. | 20 - 80 m/min. | 20 - 80 m/min. |
| Belt drive | 4.0 kW | 4.0 kW | 4.0 kW |
| Drive swivel mechanism/ driving device |
1.5 kW | 1.5 kW | 1.5 kW |
| Drive length adjustment | 0.55 kW | 0.55 kW | 0.55 kW |
| Drive height adjustment | 1.5 kW | 1.5 kW | 1.5 kW |
* Subject to technical changes.
